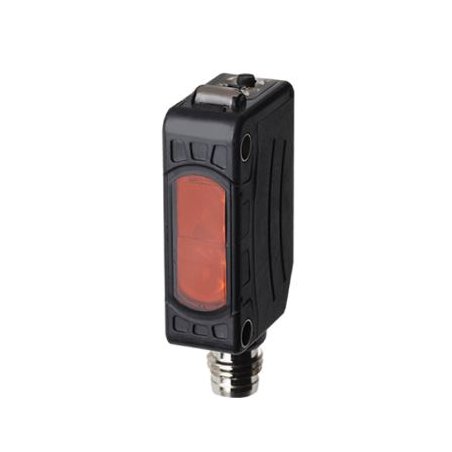

BJ3M-PDT-C-P Sensor Fotoelectrico retroreflectivo (filtro polarizado) deteccion de 3m alimentacion de 12-24VCC

Referencia BJ3M-PDT-C-P

Sensor Fotoelectrico retroreflectivo (filtro polarizado) con distancia de deteccion de 3 metros; alimentacion de 12-24VCC modo de operacion Light ON Dark On seleccionable por potenciometro, salida PNP y proteccion IP67

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Data sheet


Sensing type	Retroreflective type(built-in polarizing filter)
Sensing distance	3m(MS-2A)
Sensing target	Opaque material of min. Ø75mm
Light source	Red LED(660nm)
Response time	Max. 1ms
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	PNP open collector
Connection type	Connector type(M8)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 55â„ƒ, storage: -40 to 70â„ƒ
Protection structure	IP67
Approval
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate
Accessories_Common	Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
Accessories_Individual	Reflector(MS-2A)
Weight	Approx. 55g (approx. 30g)
