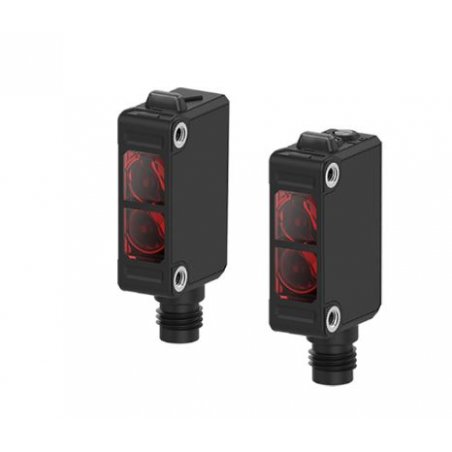

BJX30M-TDT-C Sensor fotoeléctrico compacto detección 30m alimentación 10-30VCC

Referencia BJX30M-TDT-C

Sensor fotoeléctrico compacto, distancia de detección 30m; tiempo en respuesta max. 1ms. alimentación 10-30VCC +-10%; modo de operación light ON/dark ON seleccionable por switch, salida de control NPN/PNP a colector abierto; protección IP65 (estándar

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Sensor, Photo, Through beam, 30M Sensing distance, Connector Type, Light & Dark On, NPN Output, 10-30 VDC

Data sheet
Sensing type	Through-beam type
Sensing distance	30m
Sensing target	Opaque material of min. Ø15mm
Light source	Red LED(660nm)
Response time	Max. 1ms
Power supply	10-30VDC ? ¬±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 20mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN open collector
Connection type	Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 60â„ƒ, storage: -40 to 70â„ƒ
Protection structure	IP65(IEC standard)
Approval
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	•Case: polycarbonate •LED CAP: polycarbonate •Lens, Lens cover: polymethyl methacrylate
Accessories_Common	Mounting bracket, M3 bolt: 4, adjustment screwdriver
Weight	Approx. 65g(approx. 12g)
