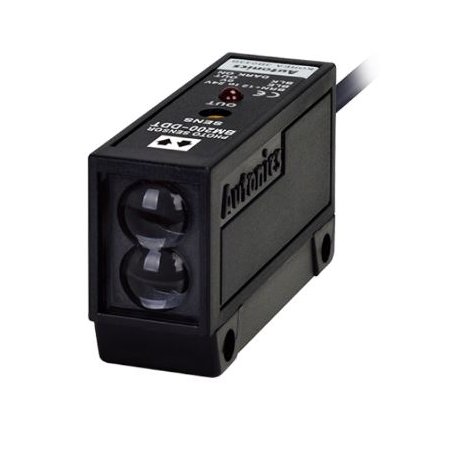

BM200-DDT(DARK ON) Sensor Fotoelectrico difuso reflectivo con deteccion de 200ml alimentacion de 12-24VCC

Referencia BM200-DDT(DARK ON)

Sensor Fotoelectrico difuso reflectivo con distancia de deteccion de 200 milimetros; alimentacion de 12-24VCC modo de operacion Dark ON, salida NPN y

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!


Sensing type	Diffuse reflective type
Sensing distance	200mm
Sensing target	Opaque, Translucent material, Transparent material
Light source	Infrared LED(940nm)
Response time	Max. 3ms
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 40mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON(option: Dark ON)
Control output	NPN open collector
Connection type	Cable type(Ø4, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-10 to 60â„ƒ, storage: -25 to 70â„ƒ
Approval
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 10% at sensing distance
Material	Case: Acrylonitrile butadiene styrene, Sensing part: Acryl, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Individual	Adjuster driver
Accessories_Common	Fixing bracket, Bolts, Nuts
Weight	Approx. 88g
