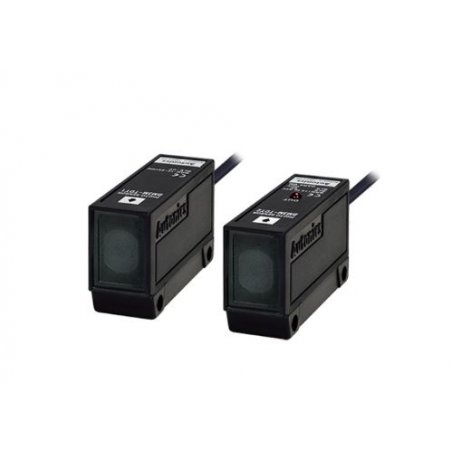

BM3M-TDT1,2 Sensor Fotoelectrico tipo barrera deteccion de 3m alimentacion 12-24VCC

Referencia BM3M-TDT1,2

Sensor Fotoelectrico tipo barrera con distancia de deteccion de 3 metros; alimentacion de 12-24VCC modo de operacion Dark ON, salida NPN y

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Sensing type	Through-beam type
Sensing distance	3m
Sensing target	Opaque material of min. Ø8mm
Light source	Infrared LED(940nm)
Response time	Max. 3ms
Power supply	12-24VDC
Current consumption	Emitter/Receiver: Max. 45mA
Sensitivity adjustment	Fixed
Operation mode	Dark ON
Control output	NPN open collector
Connection type	Cable type(Ø4, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-10 to 60â„ƒ, storage: -25 to 70â„ƒ
Approval
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Common	Fixing bracket, Bolts, Nuts
Weight	Approx. 170g
