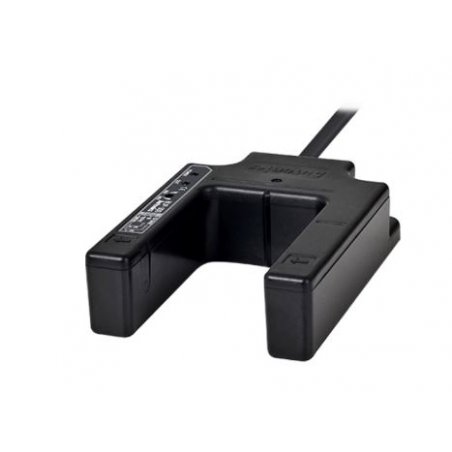

BUP-50-P Sensor Fotoelectrico tipo barrera deteccion de 50 ml alimentacion de 12-24VCC

Referencia BUP-50-P

Sensor Fotoelectrico tipo barrera con distancia de deteccion de 50 milimetros; alimentacion de 12-24VCC modo de operacion Light ON Dark ON seleccionable por cable de control, salida PNP y proteccion IP66

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Sensor, Photo, Plastic Case, Slot Style, Fixed Sensitivity, Light & Dark On, PNP Output, 12-24 VDC

Data sheet


Sensing type	Through-beam type
Sensing Cannel	1-channel
Sensing distance	50mm
Sensing target	Opaquematerial of min. Ø4mm
Light source	Infrared LED(940nm)
Response time	Max. 1ms
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Fixed
Operation mode	Light ON/Dark ON(set by control wire)
Control output	PNP open collector
Connection type	Cable type(Ø4, 2m)
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-25 to 65â„ƒ, storage: -25 to 70â„ƒ
Protection structure	IP66
Approval
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate
Weight	Approx. 140g
