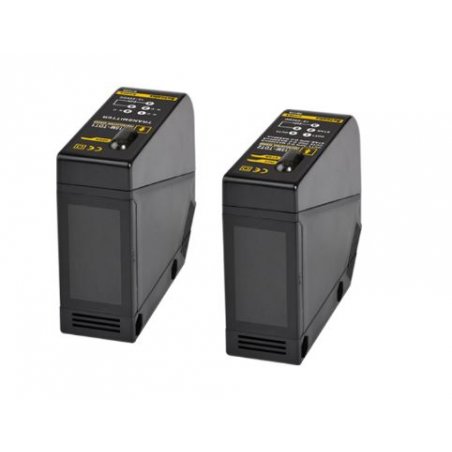

BX15M-TFR Sensor Fotoelectrico tipo barrera deteccion de 15 m alimentacion de 24-240VCC/24-240VCA

Referencia BX15M-TFR

Sensor Fotoelectrico tipo barrera con distancia de deteccion de 15 metros; alimentacion de 24-240VCC/24-240VCA modo de operacion Light ON Dark ON seleccionable por interruptor, salida NPN y proteccion IP66

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Sensor, Photo, Through Beam, 15M Sensing Distance, Light & Dark On, Relay Output, 24-240 VAC & VDC

Data sheet


Sensing type	Through-beam type
Sensing distance	15m
Sensing target	Opaque material of min. Ø15mm
Light source	Infrared LED(850nm)
Response time	Max. 20ms
Power supply	24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(ripple P-P: max. 10%)
Current consumption	Emitter/Receiver: Max. 3VA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	Relay
Connection type	Terminal block type
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 55â„ƒ, storage: -25 to 70â„ƒ
Protection structure	IP66
Approval
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Common	Adjuster driver, Fixing bracket, Bolts, Nuts
Weight	Approx. 225g
