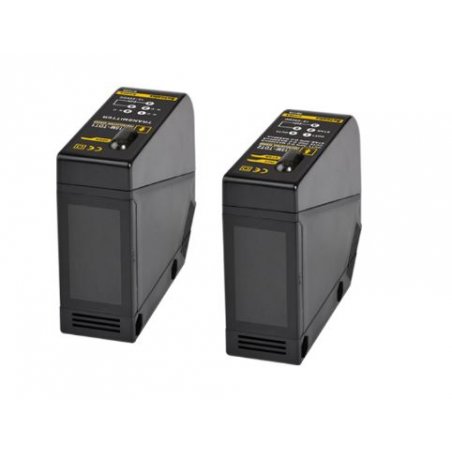

IMAGEN DE REFERENCIA

BX15M-TFR-T Sensor Fotoelectrico tipo barrera deteccion de 15 m alimentacion de 24-240VCC/24-240VCA

BX15M-TFR-T

Sensor Fotoelectrico tipo barrera con distancia de deteccion de 15 metros; alimentacion de 24-240VCC/24-240VCA modo de operacion Light ON Dark ON seleccionable por interruptor, salida NPN y proteccion IP66

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Sensor, Photo, Through Beam, 15M Sensing Distance, Light & Dark On, Relay Output, Timer, 24-240 ...

Data sheet

Sensing type Through-beam type
Sensing distance 15m
Sensing target Opaque material of min. Ø15mm
Light source Infrared LED(850nm)
Response time Max. 20ms
Power supply 24-240VAC~ ±10% 50/60Hz, 24-240VDC EQ.svg ±10%(ripple P-P: max. 10%)
Current consumption Emitter/Receiver: Max. 3VA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by switch)
Control output Relay
Timer function Timer Function
Connection type Terminal block type
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -20 to 55℃, storage: -25 to 70℃
Protection structure IP66
Approval CE.svg
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial,
Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Common Adjuster driver, Fixing bracket, Bolts, Nuts
Weight Approx. 226g
