IMAGEN DE REFERENCIA

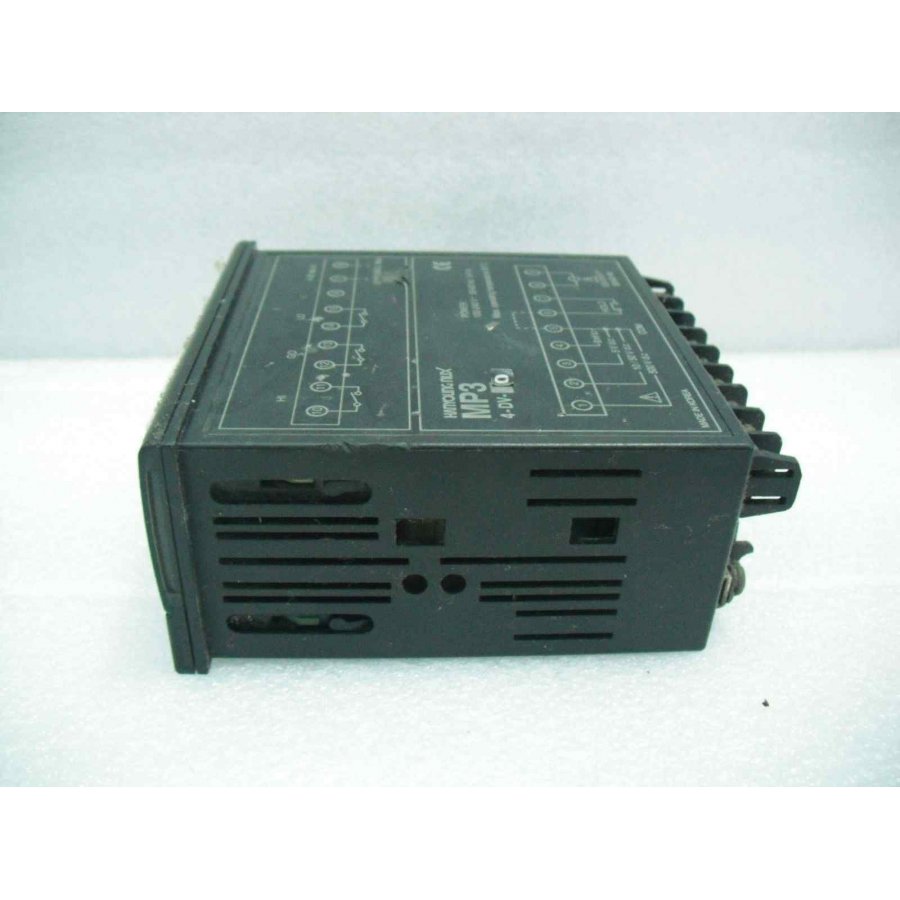

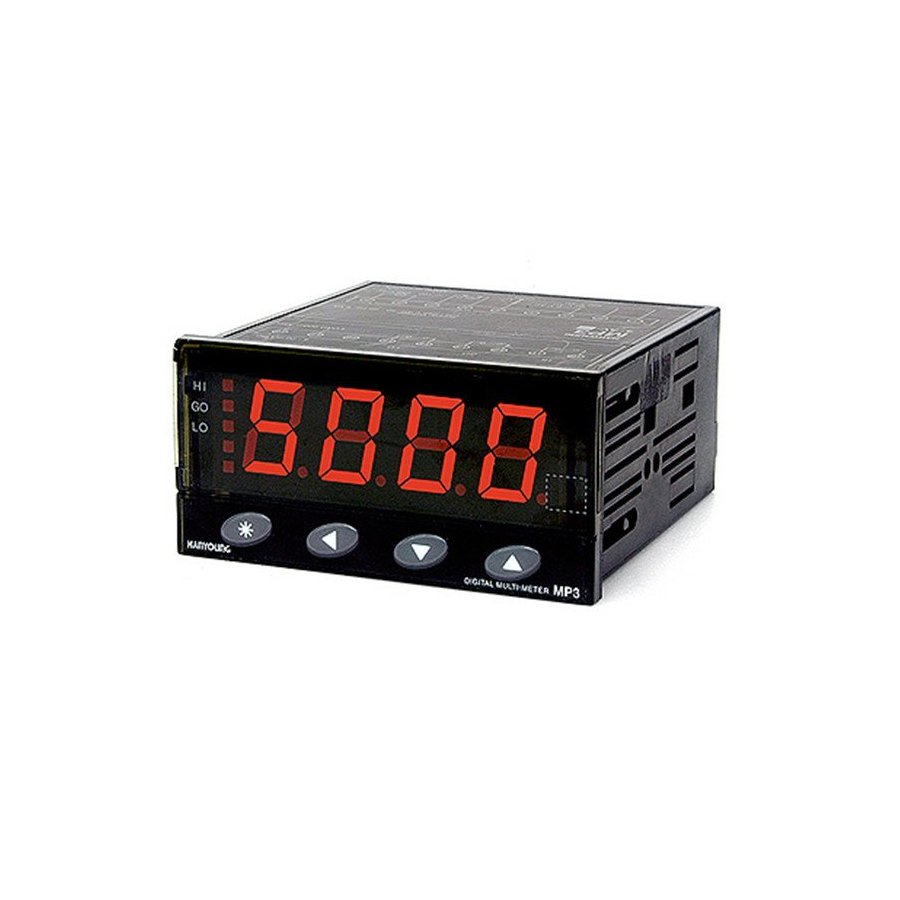

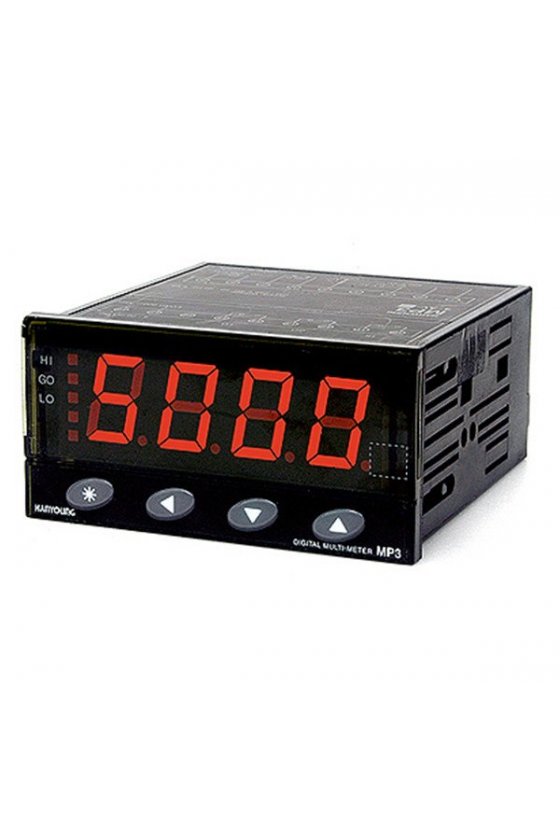

Multímetro digital (dimensión: 96 × 48 ㎜) Amperímetro DC (DC) Solo para mostrar MP3-4DANA

0 Reseñas(s)
MP3-4DANA

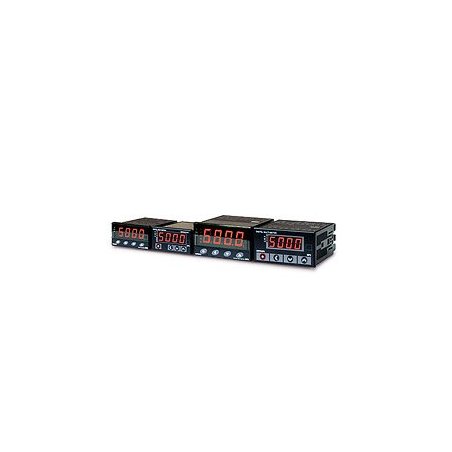

Serie MP

- Medición de RMS

- Rango de entrada múltiple

- Amplio rango de visualización

- 4 dígitos (-1999 ~ 9999)

FICHA TÉCNICA

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

HANYOUNG NUX
Cotizar
Model Code Information
MP3- Digital multi meter (dimension : 96×48 ㎜)
Displayable Digits 4         4 digits (9999)
Input type AV       AC(AC) voltmeter
AA       AC(AC) ammeter
DV       DC(DC) voltmeter
DA       DC(DC) ammeter
AVR       AC voltmeter(RMS)
AAR       AC ammeter(RMS)
Output (Optional) N     Only for displaying
0     Relay(HI, GO, LO), measured Value output (4 - 20 ㎃ DC)
1     Relay(HI, GO, LO)
2     NPN Open collector(HI, GO, LO), BCD output(static)
3     PNP Open collector(HI, GO, LO), BCD output(static)
4     NPN Open collector(HI,GO,LO), measured Value output (4-20 ㎃)
5     PNP Open collector(HI,GO,LO), measured Value output (4-20 ㎃)
6     NPN Open collector(HI, GO, LO), serial output
7     PNP Open collector(HI, GO, LO), serial output
8     NPN Open collector(HI, GO, LO), communication (RS485)
9     PNP Open collector(HI, GO, LO), communication (RS485)
10     BCD output (dynamic)
11     Relay(HI, GO, LO), RS485 output
Front panel type A   Front acrylic type
B   Front plane type
Front panel type   None (100 - 240 V AC 50 - 60 ㎐)
C 24 V DC (front division B, only applied with the name plate attached type)
※ Please select the DC voltmeter because when measuring DC cuove 5A, users need to use exclusive shunt.

Model Code Information
MP6- Digital multi meter (dimension : 72×36 ㎜)
Displayable Digits 4         4 digits (9999)
Input type AV       AC(AC) voltmeter
AA       AC(AC) ammeter
DV       DC(DC) voltmeter
DA       DC(DC) ammeter
AVR       AC voltmeter(RMS)
AAR       AC ammeter(RMS)
Output (Optional) N     Only for displaying
0     Relay(HI, GO, LO), measured Value output (4 - 20 ㎃ DC)
1     Relay(HI, GO, LO)
4     NPN Open collector(HI,GO,LO), measured Value output (4-20 ㎃)
5     PNP Open collector(HI,GO,LO), measured Value output (4-20 ㎃)
Front panel type A   Front acrylic type
B   Front plane type
Front panel type   None (100 - 240 V AC 50 - 60 ㎐)
C 24 V DC (front division B, only applied with the name plate attached type)

Specification

Model MP3-A MP3-B MP6-A MP6-B
Appearance
96(W) x 48(H) x 112(D) 72(W) x 36(H) x 100(D)
Power Supply 100 - 240 V AC (50 - 60 ㎐) voltage fluctuation rate ±10 %
Power Consumption 5 VA Approx. 4 VA
Display 7 segment LED Display
Insulation Resistance 100 MΩ min. (at 500 V DC) between external terminal and case
Dielectric Strength 2000 V AC min. for 1 minute between external terminal and case
Noise Immunity By noise simulator, square-shaped wave noise, pulse width 1㎲, ±3000 V
Vibration Resistance
Malfunction Resistance : 10 - 55 ㎐ Single amplitude 0.5 ㎜ X·Y· Z each direction for 1 hour
Mechanical Durability : 10 - 55 ㎐ Single amplitude 0.75 ㎜ X·Y·Z each direction for 2 hours
Shock Resistance
Malfunction Resistance : 100 ㎨ for 3 times each in X·Y·Z direction,
Mechanical Durability: 300 ㎨ for 3 times each in X·Y·Z direction
Operating Ambient temperature -10 ~ +55 °C (with no freezing)
Operating Ambient Humidity 35 ~ 85 % R.H.
Operating Circumstance With no corrosive gas
Storage Ambient Temperature -20 ~ 65 °C (with no freezing)
Relay Life Expectancy Mechanical: More than 20,000,000 times, Electrical: More than 100,000 times
