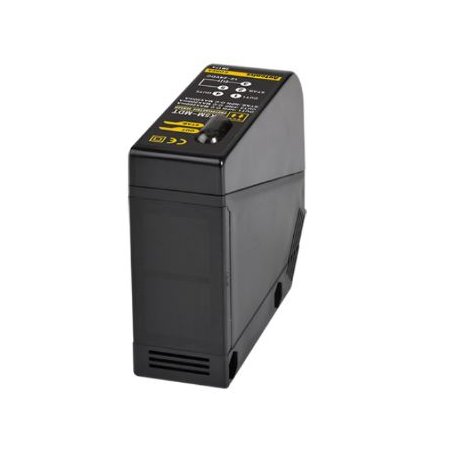

BX700-DDT-T Sensor Fotoelectrico difuso reflectivo deteccion de 700 ml alimentacion de 12-24VCC

BX700-DDT-T

Sensor Fotoelectrico difuso reflectivo con distancia de deteccion de 700 milimetros; alimentacion de 12-24VCC modo de operacion Light ON Dark ON seleccionable por interruptor, salida NPN y proteccion IP66

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Sensor, Photo, Diffuse Reflective, 700mm Sensing Distance, Light & Dark On, NPN & PNP Output, Ti...

Data sheet

Sensing type Diffuse reflective type
Sensing distance 700mm
Sensing target Opaque, Translucent material
Light source Infrared LED(940nm)
Response time Max. 1ms
Power supply 12-24VDC EQ.svg ±10%(ripple P-P: max. 10%)
Current consumption Max. 50mA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by switch)
Control output NPN, PNP open collector simultaneous output
Timer function Timer Function
Connection type Terminal block type
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -20 to 55℃, storage: -25 to 70℃
Protection structure IP66
Approval CE.svg
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance) Max. 20% at sensing distance
Material Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial,
Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Common Adjuster driver, Fixing bracket, Bolts, Nuts
Weight Approx. 117g
