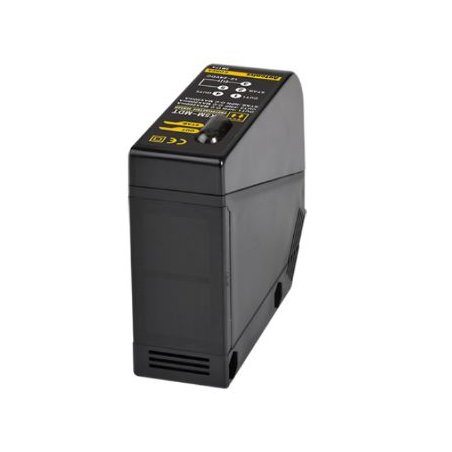

BX700-DFR Sensor Fotoelectrico difuso reflectivo deteccion de 700 ml alimentacion de 12-24VCC

Referencia BX700-DFR

Sensor Fotoelectrico difuso reflectivo con distancia de deteccion de 700 milimetros; alimentacion de 12-24VCC modo de operacion Light ON Dark ON seleccionable por interruptor, salida NPN y proteccion IP66

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Sensor, Photo, Diffuse Reflective, 700mm Sensing Distance, Light & Dark On, Relay Output, 24-240...

Data sheet


Sensing type	Diffuse reflective type
Sensing distance	700mm
Sensing target	Opaque, Translucent material
Light source	Infrared LED(940nm)
Response time	Max. 20ms
Power supply	24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 3VA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	Relay
Connection type	Terminal block type
Environment_Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature	-20 to 55â„ƒ, storage: -25 to 70â„ƒ
Protection structure	IP66
Approval
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% at sensing distance
Material	Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Accessories_Common	Adjuster driver, Fixing bracket, Bolts, Nuts
Weight	Approx. 115g
