Contenido: 20 pzas

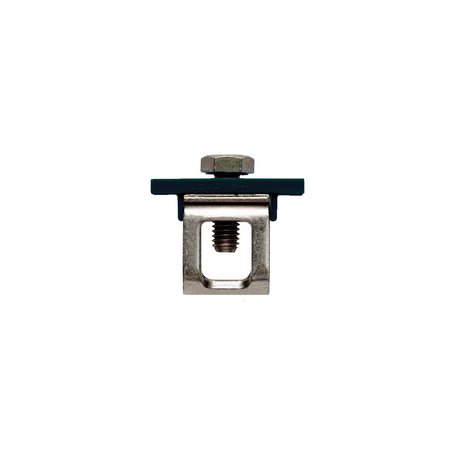

Brida-tornillo (barra colectora), Brida-tornillo, plata, 35 mm², Anchura: 14 mm, M 6, Acero
Versión | Brida-tornillo (barra colectora), Brida-tornillo, plata, 35 mm², Anchura: 14 mm, M 6, Acero |
Código | 0502610000 |
Tipo | ZB 35K SW M6X16 |
GTIN (EAN) | 4008190332587 |
Cantidad | 20 Pieza |
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Versión | Brida-tornillo (barra colectora), Brida-tornillo, plata, 35 mm², Anchura: 14 mm, M 6, Acero |
Código | 0502610000 |
Tipo | ZB 35K SW M6X16 |
GTIN (EAN) | 4008190332587 |
Cantidad | 20 Pieza |
Profundidad | 34 mm |
Profundidad (pulgadas) | 1,339 inch |
Altura | 32 mm |
Altura (pulgadas) | 1,26 inch |
Anchura | 14 mm |
Anchura (pulgadas) | 0,551 inch |
Peso neto | 18,65 g |
Núm. de certificación (ATEX) | DEMKO03ATEX136028U |
Núm. de certificación (IECEX) | IECEXULD13.0005U |
Sección máx. del conductor (ATEX) | 35 mm² |
Sección máx. del conductor (IECEX) | 35 mm² |
Gama de temperaturas de servicio | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
Caracterización EN 60079-7 | Ex eb II C Gb |
Etiqueta Ex 2014/34/UE | II 2 G D |
REACH SVHC | / |
Estado de cumplimiento de la directiva RoHS | Conforme sin exención |
Núm. de certificación (ATEX) | DEMKO03ATEX136028U |
Núm. de certificación (IECEX) | IECEXULD13.0005U |
Sección máx. del conductor (ATEX) | 35 mm² |
Sección máx. del conductor (IECEX) | 35 mm² |
Gama de temperaturas de servicio | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
Caracterización EN 60079-7 | Ex eb II C Gb |
Etiqueta Ex 2014/34/UE | II 2 G D |
Advertencia de seguridad | Installation instructions: The potential equalisation (PE) rail modules are suitable for use in housings in atmospheres with flammable gases and dust. For use in areas with flammable gases, these housings must meet the requirements of EN 60079-0 and EN 60079-7. For use in areas with flammable dust, these housings must meet the requirements of EN 60079-0 and EN 60079-31. When combined with other terminal block ranges and sizes, and when other accessories are used, you must comply with the clearance and creepage distances given. Regarding accessory use, the manufacturer's instructions must be followed. List of restrictions: The PE rail modules are considered one component, with Ex marking when used with the busbar holders of type SH and WEW. When used independently, the above named components are not covered by this certificate. |
