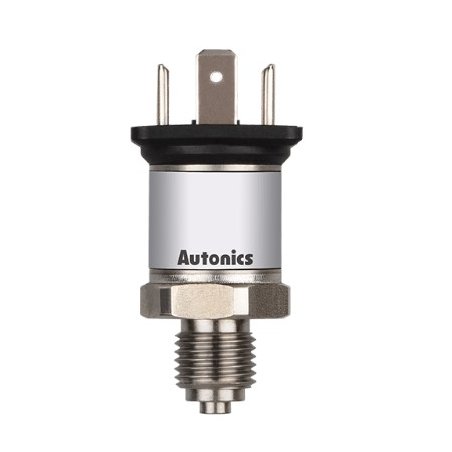

TPS30-G2AAN4-00 Transmisor de presión manométrica tipo de conexión de cable DIN43650-A puerto de presión NPT 1/4

Referencia TPS30-G2AAN4-00

Transmisor de presión manométrica, tipo de conexión de cable DIN43650-A tipo conector, rango de presión 0 a 1MPa; salida de corriente (CC4-20mA), puerto de presión NPT 1/4 (DIN3852)

Measured materials : Liquid, gas, oil (lnappropriate to corrosion environment for stainless steel 316L)
Power supply : 11-36VDC (ripple P-P: max. 10%)
Accuracy : Max. ±0.5% F.S. (including linearity, hysteresis, reproducibility)
Linearity : Max. ±0.2% F.S.
Hysteresis : Max. ±0.2% F.S.
Environment_Ambient temperature : -40 to 85℃, storage: -40 to 125℃
Protection structure : IP65(IEC standard)
Connection type : DIN43650-A connector type
Output specification : Current output(DC4-20mA)

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Measured materials	Liquid, gas, oil (lnappropriate to corrosion environment for stainless steel 316L)
Power supply	11-36VDC (ripple P-P: max. 10%)
Accuracy	Max. ±0.5% F.S. (including linearity, hysteresis, reproducibility)
Linearity	Max. ±0.2% F.S.
Hysteresis	Max. ±0.2% F.S.
Environment_Ambient temperature	-40 to 85℃, storage: -40 to 125℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Environment_Fluid temperature	-40 to 125℃
Protection structure	IP65(IEC standard)
Material	Stainless steel 316L (head part of head type: aluminium diecasting), connector: Polybutylene terephthalate G30, water-proof rubber: silicon
Measurement pressure	Gauge pressure
Connection type	DIN43650-A connector type
Pressure range	0 to 10MPa
Weight	approx. 130g (approx. 50g)
Output specification	Current output(DC4-20mA)
Pressure port	NPT1/4(DIN3852)
