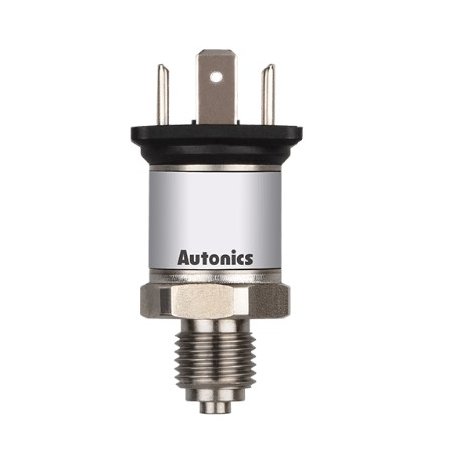

TPS30-G2BVN4-00 Transmisor de presion manométrica tipo de conexión de cable DIN43650-A puerto de presión NPT1/4(DIN3852)

Referencia TPS30-G2BVN4-00

Measured materials : Liquid, gas, oil (lnappropriate to corrosion environment for stainless steel 316L)
Power supply : 8-36VDC (ripple P-P: max. 10%)
Accuracy : Max. ±0.5% F.S. (including linearity, hysteresis, reproducibility)
Linearity : Max. ±0.2% F.S.
Hysteresis : Max. ±0.2% F.S.
Environment_Ambient temperature : -40 to 125℃, storage: -40 to 125℃
Protection structure : IP65(IEC standard)
Connection type : DIN43650-A connector type
Output specification : Voltage(1-5VDC ) output

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Measured materials	Liquid, gas, oil (lnappropriate to corrosion environment for stainless steel 316L)
Power supply	8-36VDC (ripple P-P: max. 10%)
Accuracy	Max. ±0.5% F.S. (including linearity, hysteresis, reproducibility)
Linearity	Max. ±0.2% F.S.
Hysteresis	Max. ±0.2% F.S.
Environment_Ambient temperature	-40 to 125℃, storage: -40 to 125℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Environment_Fluid temperature	-40 to 125℃
Protection structure	IP65(IEC standard)
Material	Stainless steel 316L (head part of head type: aluminium diecasting), connector: Polybutylene terephthalate G30, water-proof rubber: silicon
Measurement pressure	Gauge pressure
Connection type	DIN43650-A connector type
Pressure range	0 to 20MPa
Weight	approx. 130g (approx. 50g)
Output specification	Voltage(1-5VDC ) output
Pressure port	NPT1/4(DIN3852)
