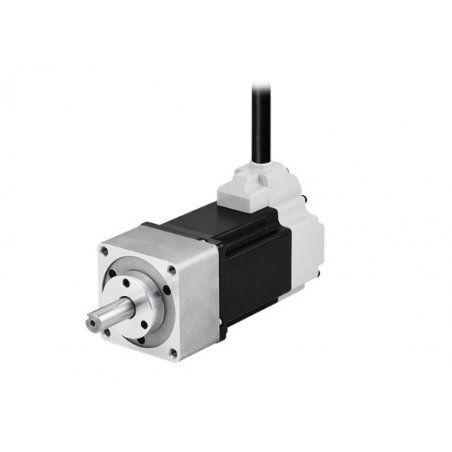

AiA-M-60LA-G5 motor con reductor ratio de engrane 1 5 Máx. torque mantenido 7Nm con rotor de inercia 490×10-7 kgm²

Referencia AiA-M-60LA-G5

Tipo de motor : Con reductor integrado Ratio de engrane : 1:5 Máx. torque mantenido : 7N.m Momento del rotor de inercia : 490×10-7 kg.m² Corriente nominal : 2A/Fase Torque disponible : 5N.m Ángulo de paso estándar : 0.36 ° Contragople : 35min

Motor type : Built-in gear type
Reduction ratio : 1:5
Max. holding torque : 7N.m
Rotor Moment Of Inertia : 490×10^-7 kg.m²
Rated current : 2A/Phase
Allowable torque : 5N.m
Standard step angle : 0.36 °
Backlash : 35min (0.58 °)
Winding Resistance : 2.4Ω
Inductance : 8.5 mH/Phase
Weight : ≈ 1.54 kg (≈ 1.70 kg)

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Motor type	Built-in gear type
Reduction ratio	1:5
Max. holding torque	7N.m
Rotor Moment Of Inertia	490×10^-7 kg.m²
Rated current	2A/Phase
Allowable torque	5N.m
Standard step angle	0.36 °
Backlash	35min (0.58 °)
Winding Resistance	2.4Ω
Inductance	8.5 mH/Phase
Weight	≈ 1.54 kg (≈ 1.70 kg)
Motor phase	2-Phase
Motor_Operation Method	Bipolar
Insulation class	B type (130 ℃)
Insulation resistance	≥ 100 MΩ (between motor coil-case 500 VDC megger)
Dielectric strength	1000 VAC~ 50/60 Hz for 1 min (between motor coil-case)
Vibration	1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock	≲ 50 G
Environment_Ambient temperature	0 to 50℃, storage: -20 to 70℃
Environment_Ambient humidity	20 to 85%RH, storage: 15 to 90%RH
Protection structure	IP30(IEC Standard)
Power supply	5VDC ±5%(ripple P-P: max. 5%)
Current consumption	≤ 50 mA (no load)
Resolution	10,000PPR(2,500PPR×4-multiply)
Control output	Line Driver
Output phase	A, , B, , Z,
Max. response frequency	300kHz
