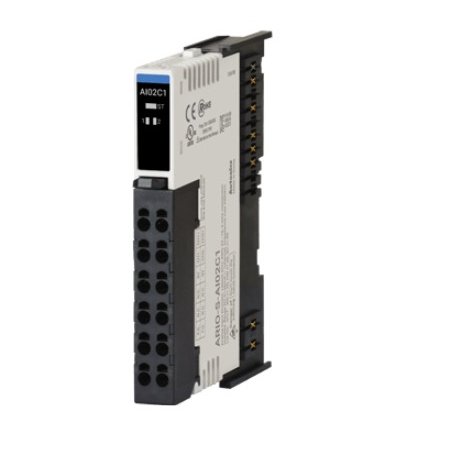

IMAGEN DE REFERENCIA
![](https://www.jinsa.com.mx/104585-large_default/ario-body-s-ai02c2-modular-type-remote-remote-io-ario-series.jpg)
Existen artículos en su cotización.
Precios totales :
Di algo..
Sin resultados, re intente de nuevo
Navegador incompatible
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
I/O method | Current input |
---|---|
I/O range | 4 to 20mA |
Accuracy_Room temp. | ±0.3% F.S. |
Accuracy_Out of room temp. | ±0.6% F.S. |
Input impedance | Min. 1MΩ / Max. 250Ω |
Status indicator ON conditions | ≥4mA |
Resolution | 12bit |
Power consumption_ABUS | 5VDC |
Power consumpti_I/O | max. 100mA (max. 0.5W) |
Mounting type | DIN rail mounting |
Insulation resistance | 100MΩ (at 500VDC I/O to inner circuit: photocoupler insulated, between channels: non-insulated |
Environment_Ambient temperature | -10 to 55℃, storage: -25 to 70℃ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Protection structure | IP20(IEC standard) |
Material | Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene |
Weight | Approx. 75g(approx. 108g) |
