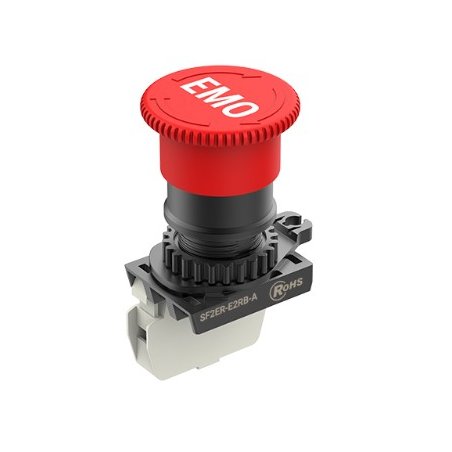

SF2ER-E2RB-A Botón pulsador de paro de emergencia de seguridad cabezal corto no iluminado de 40mm rojo contacto B1

Referencia SF2ER-E2RB-A

Botón pulsador de paro de emergencia de seguridad, cabezal corto no iluminado, diámetro 40mm; color rojo, contacto B:1; marca emergency off

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Rated voltage/current	AC-12(220VAC~
Contact operating power	3.0 to 8.0N/1 contact
Operation distance	5.0mm(0/-0.5)
Rotation angle	C.W 52˚
Allowable operation frequancy_Electrical	20 times/minute
Allowable operation frequancy_Mechanical	20 times/minute
Life cycle_Electrical	Min. 100,000 times
Life cycle_Mechanical	Min. 250,000 times
Insulation resistance	100MΩ or more (500VDC megger basis)
Dielectric strength	2,500VAC 50/60Hz for 1 minute
Vibration	1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Vibration_Malfunction	1.5mm double amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 10 minutes
Shock	1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
Shock_Malfunction	250m/s² (approx. 25g) in each X, Y, Z direction for 3 times
Environment_Ambient temperature	-20 to 65℃, storage: -40 to 70℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP65 (oil resistant, IEC standard)
Material	Button: polycarbonate, body: polyamide 6, lever in fixing unit: polyamide 6
Weight	Approx. 66g
