Series: Fixed-Field; Range: 50 mm Cutoff; Input: 10-30 V dc; Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 Pigtail QD

FICHA TECNICA

PowerDC
Sensing BeamVisible Red LED
Cable Length (m)0.15
IP RatingIP67
Supply Voltage10-30 V dc
Item StatusRELEASED
Sensing Mode (General)Proximity
Sensing Mode (Detailed)Background Suppression (Fixed)
Housing StyleRectangular
Primary Housing MaterialThermoplastic
Small Visible SpotLED
Input/OutputDiscrete
Max Sensing Distance (mm)50
OutputsBipolar (NPN & PNP)
ConnectionPigtail QD
Quick Disconnect TypeM12
OperationLight Operate
Min Op. Temperature (C)-20
Max Op. Temp. (C)55
Output response time (ms)0.85 ON/OFF
Special Feature: Intrinsically SafeNo
Special Feature: Remote TeachNo
Special Feature: Water DetectionNo
Sensing Beam Wavelength640
Delay at Power-up (ms)120
Repeatability (µs)175
Number of Pins4
Max Op. Relative Humidity [%]95% @ 50°C
Lens MaterialPolycarbonate
AdjustmentsN/A
IndicatorLEDs
Feature: Washdown RatedNo
Feature: Clear Object DetectionNo
Feature: Timing (Hold/Delay)No
Feature: AudibleNo
Feature: Chemical ResistantNo
Feature: Quick DisconnectYes
Feature: Health/Marginal Signal OutputNo
DeviceNetNo
EPLAN StatusPublished
EPLAN Original Sent Date06/06/2024

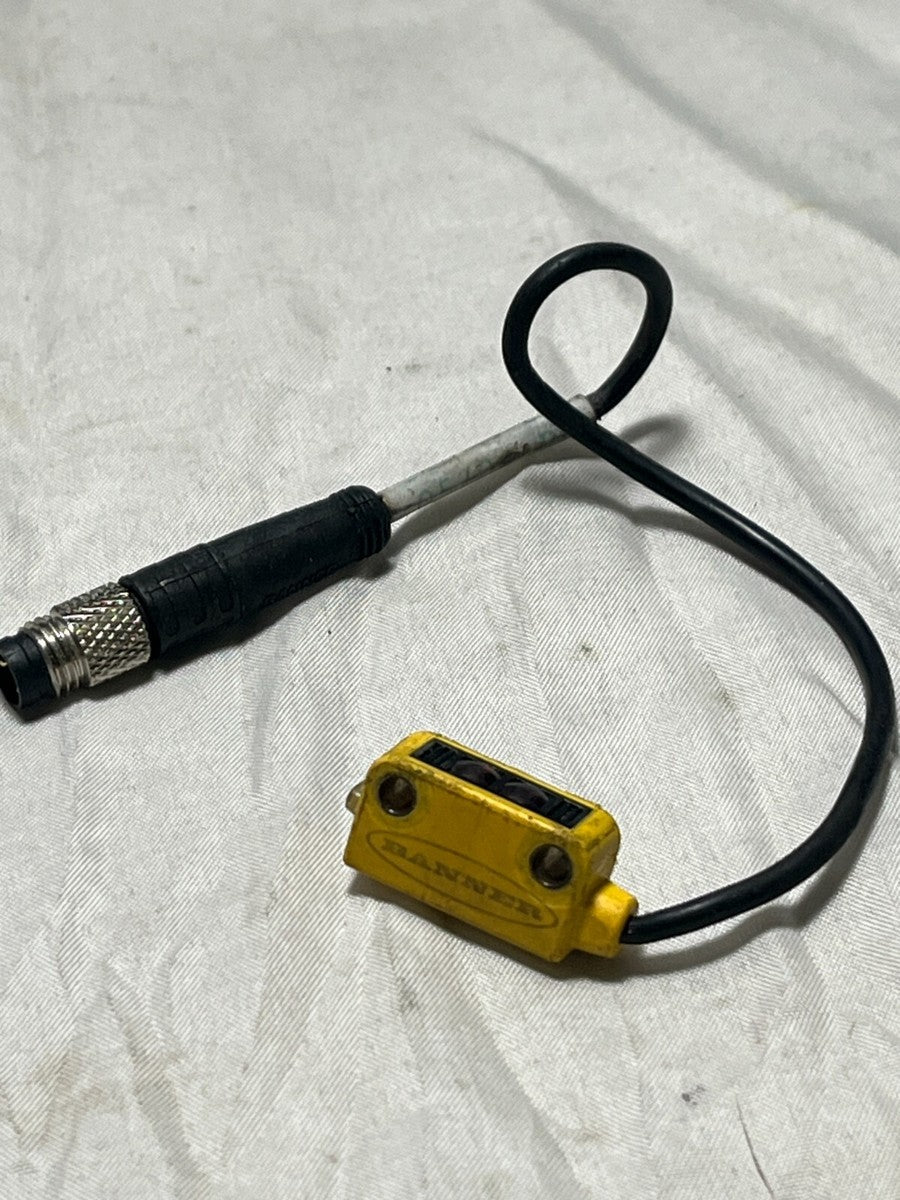

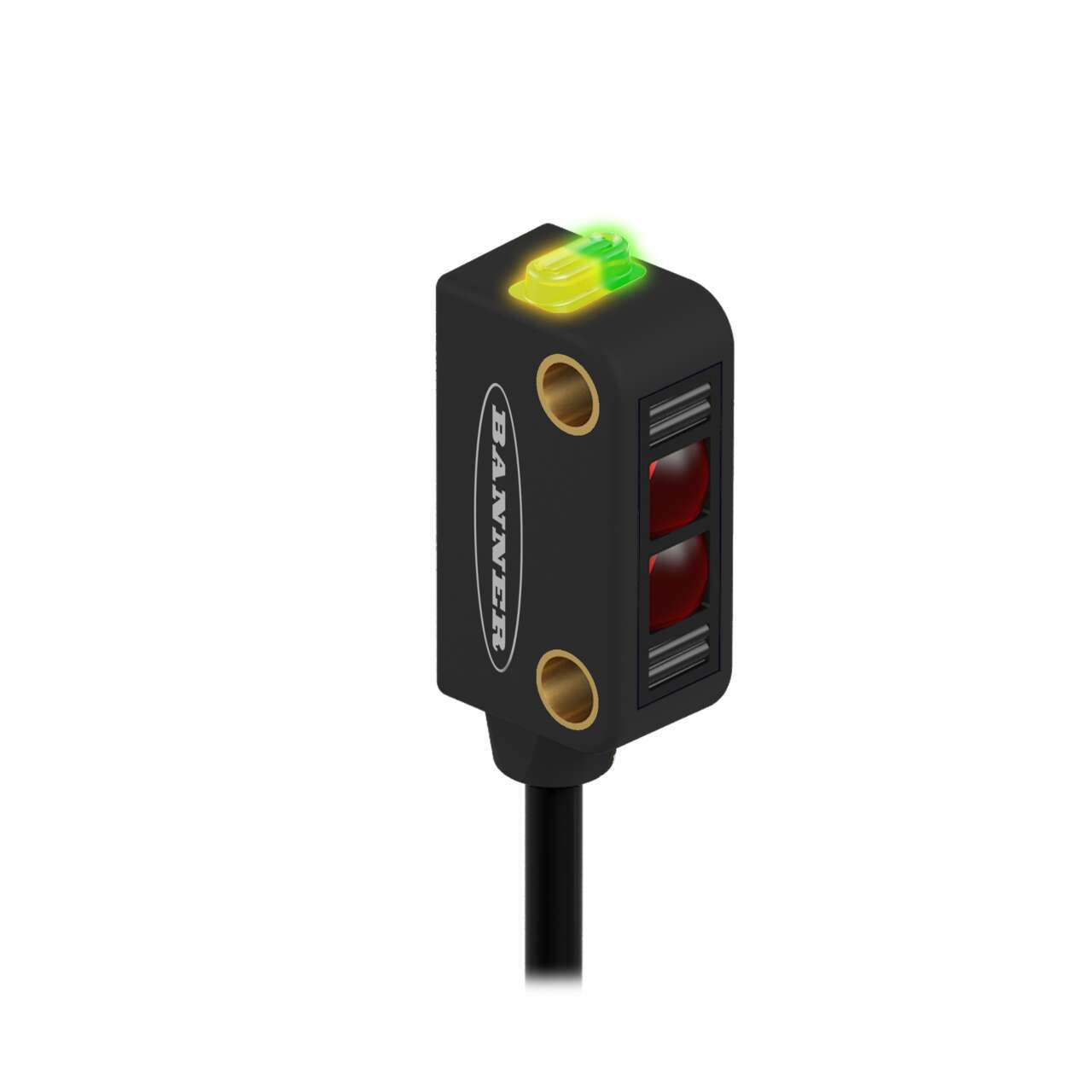

Q12AB6FF50Q5 sensor WORLD-BEAM Q12 74123

BANNER

Q12AB6FF50Q5 sensor WORLD-BEAM Q12 74123

SKU Q12AB6FF50Q5
$ 3,969.95
$ 2,778.97 + IVA
¡Nos quedan muy pocos! verifica existencias en el siguiente botón
Cotizar producto

Series: Fixed-Field; Range: 50 mm Cutoff; Input: 10-30 V dc; Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 Pigtail QD

FICHA TECNICA

PowerDC
Sensing BeamVisible Red LED
Cable Length (m)0.15
IP RatingIP67
Supply Voltage10-30 V dc
Item StatusRELEASED
Sensing Mode (General)Proximity
Sensing Mode (Detailed)Background Suppression (Fixed)
Housing StyleRectangular
Primary Housing MaterialThermoplastic
Small Visible SpotLED
Input/OutputDiscrete
Max Sensing Distance (mm)50
OutputsBipolar (NPN & PNP)
ConnectionPigtail QD
Quick Disconnect TypeM12
OperationLight Operate
Min Op. Temperature (C)-20
Max Op. Temp. (C)55
Output response time (ms)0.85 ON/OFF
Special Feature: Intrinsically SafeNo
Special Feature: Remote TeachNo
Special Feature: Water DetectionNo
Sensing Beam Wavelength640
Delay at Power-up (ms)120
Repeatability (µs)175
Number of Pins4
Max Op. Relative Humidity [%]95% @ 50°C
Lens MaterialPolycarbonate
AdjustmentsN/A
IndicatorLEDs
Feature: Washdown RatedNo
Feature: Clear Object DetectionNo
Feature: Timing (Hold/Delay)No
Feature: AudibleNo
Feature: Chemical ResistantNo
Feature: Quick DisconnectYes
Feature: Health/Marginal Signal OutputNo
DeviceNetNo
EPLAN StatusPublished
EPLAN Original Sent Date06/06/2024
Q12AB6FF50Q5 sensor WORLD-BEAM Q12 74123
