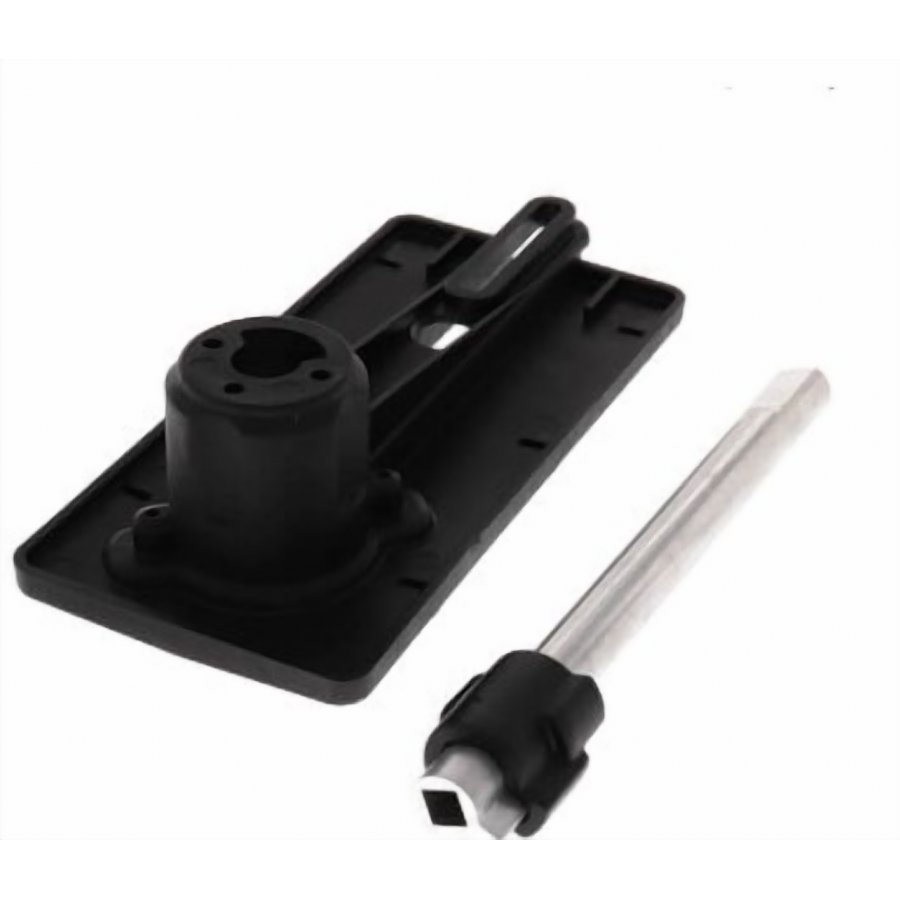

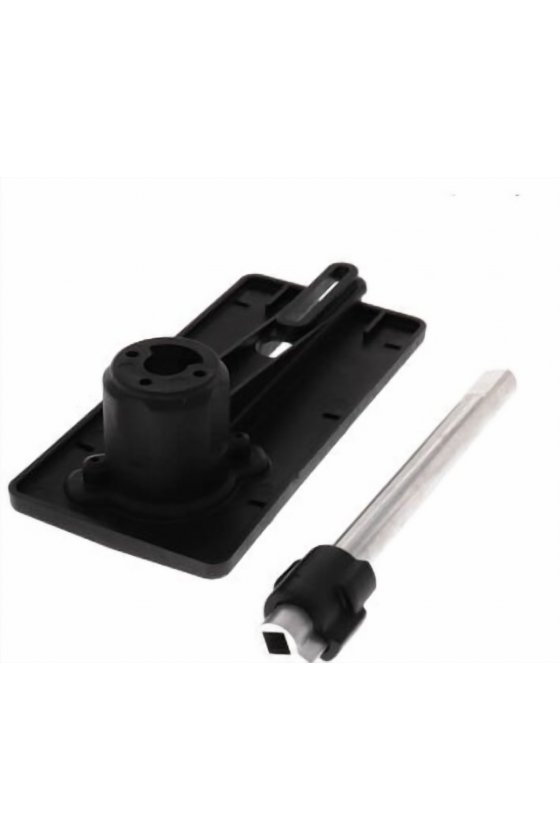

Kit de montaje de actuador de repuesto para válvulas VBN2 y VBN3
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Features:
Suitable for use with VBG2 Two-Way and VBG3 Three-Way Control Ball Valves as well as with N05xxx and S03xxx / S05xxx DCAs.
Suitable for use in cold, warm, and hot water systems.
For mediums with a temperature of +5 …+120 °C (+41…+250 °F) and a max. pressure of 360 psi.
Allows the valve to be controlled during installation or in the event of a power failure.
Actuator mounting plate can be rotated to different positions for installation in confined spaces.
Specifications:
Media temperature range +5 …+120 °C (+41…+250 °F)

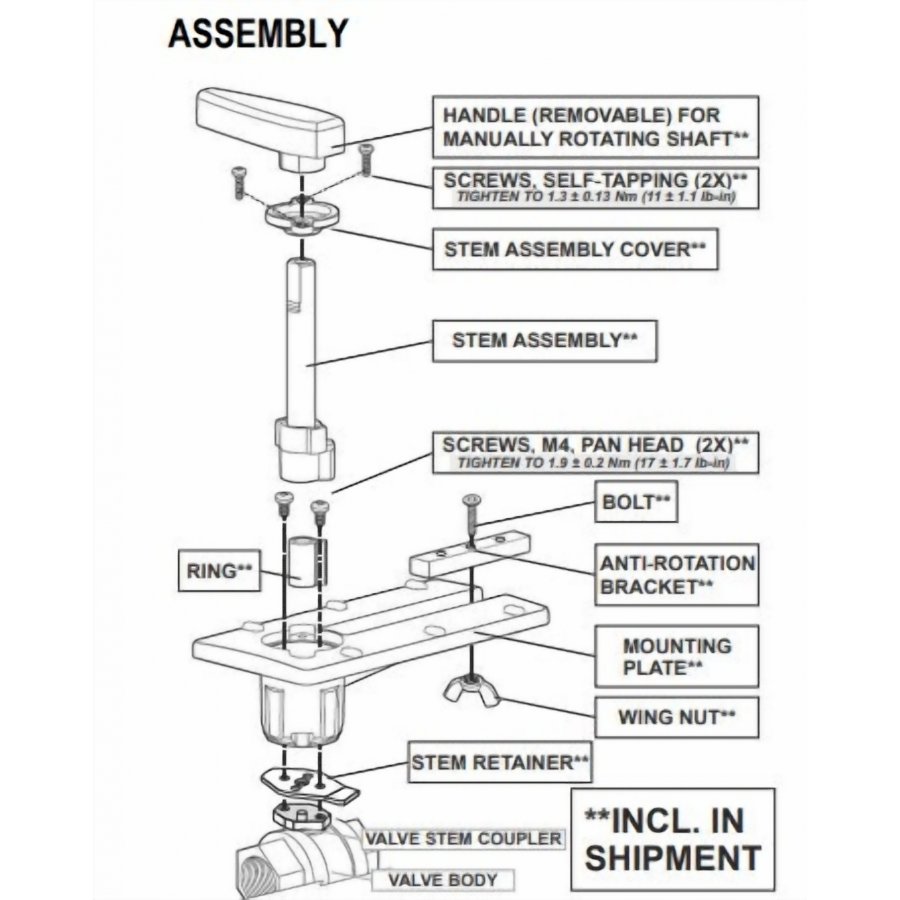

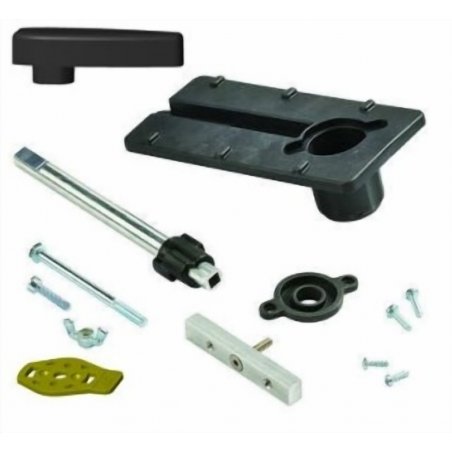

Materials: Handle PA6 + 30% GF Screws Zinc and Cr-plated Stem assembly cover PA6 + 30% GF Stem Aluminum Bolt 50036316 (S03/05xxx) Carbon steel, Zn, Cr-plated Bolt 50037231 (N05xxx) Carbon steel, Zn, Cr-plated Anti-rotation bracket Aluminum Mounting plate PA6 + 30% GF Wing nut Zn, Cr-plated Stem retainer PA6 + 30% GF
