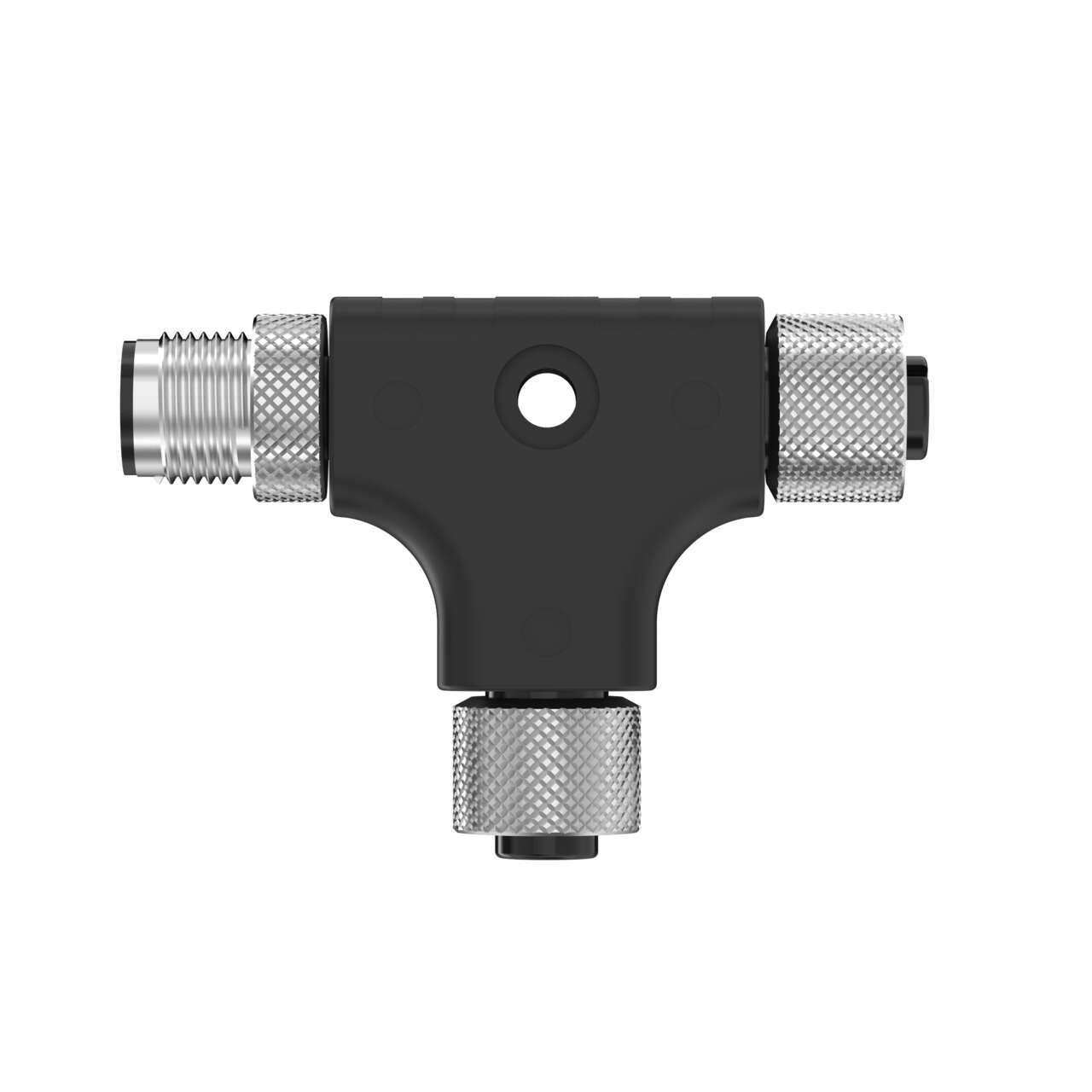

• The CSB-M1250M1250-T CONECTOR Divisor M12 T 807397 is a black and silver T-shaped M12 connector with three knurled ends for IP67 use, displayed on a white background.

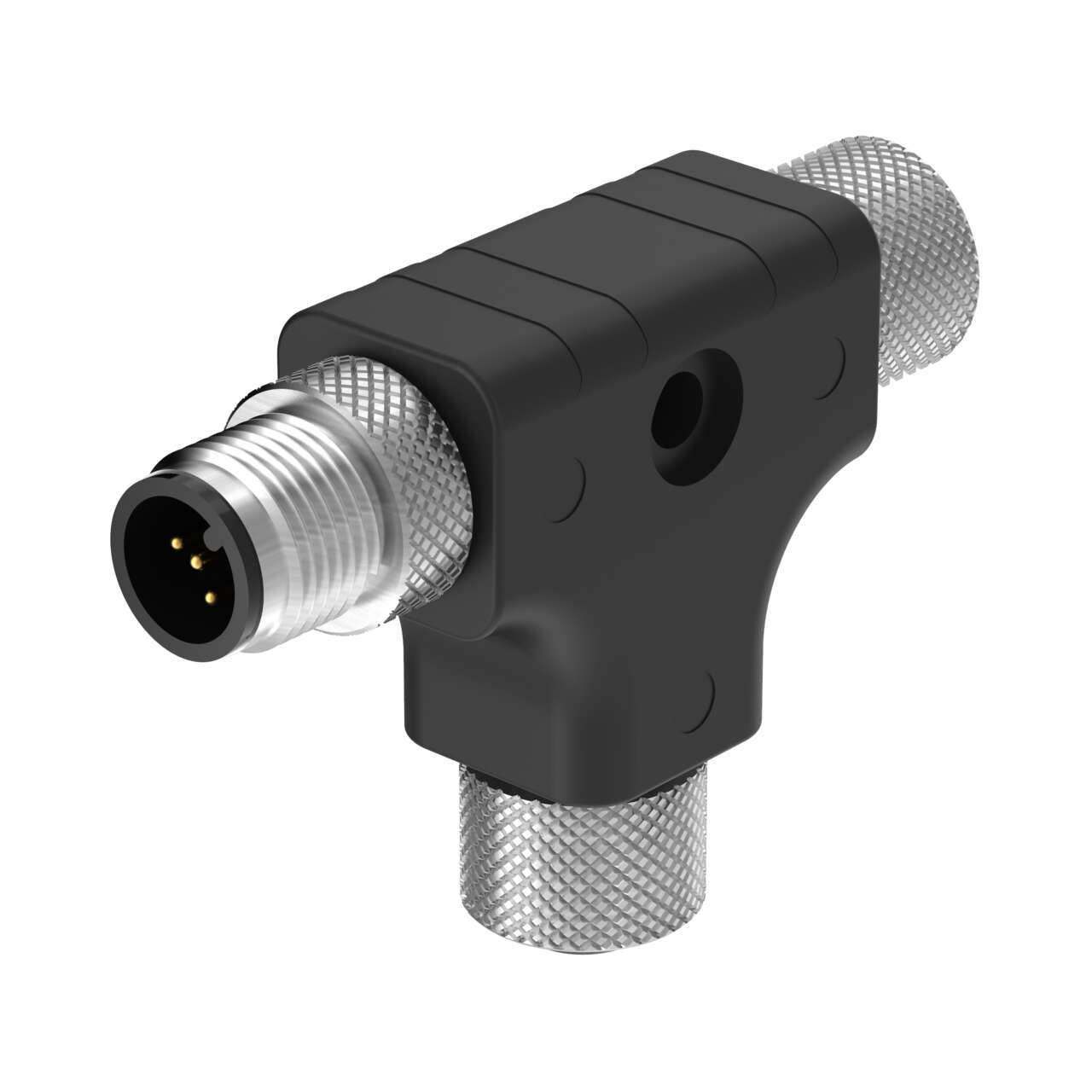

  • The CSB-M1250M1250-T CONECTOR Divisor M12 T 807397 is a T-shaped industrial M12 connector with three metal, knurled-grip ports and a black plastic casing, featuring circular pin connectors—ideal for cable division in harsh IP67 environments.

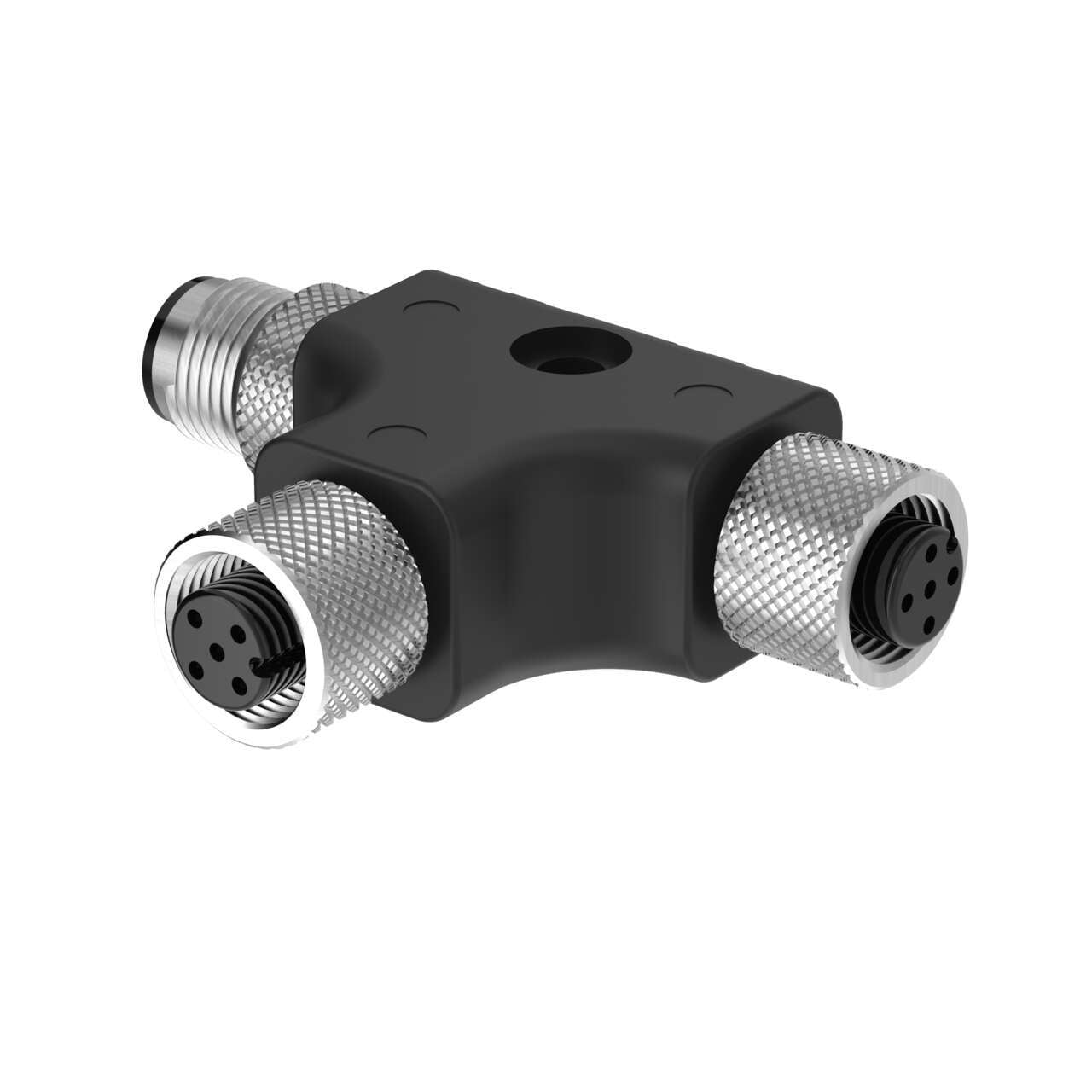

  • The CSB-M1250M1250-T CONECTOR Divisor M12 T 807397 is a black and silver T-shaped industrial M12 connector with three circular, multi-pin ports, knurled metal grips, and IP67-rated protection.

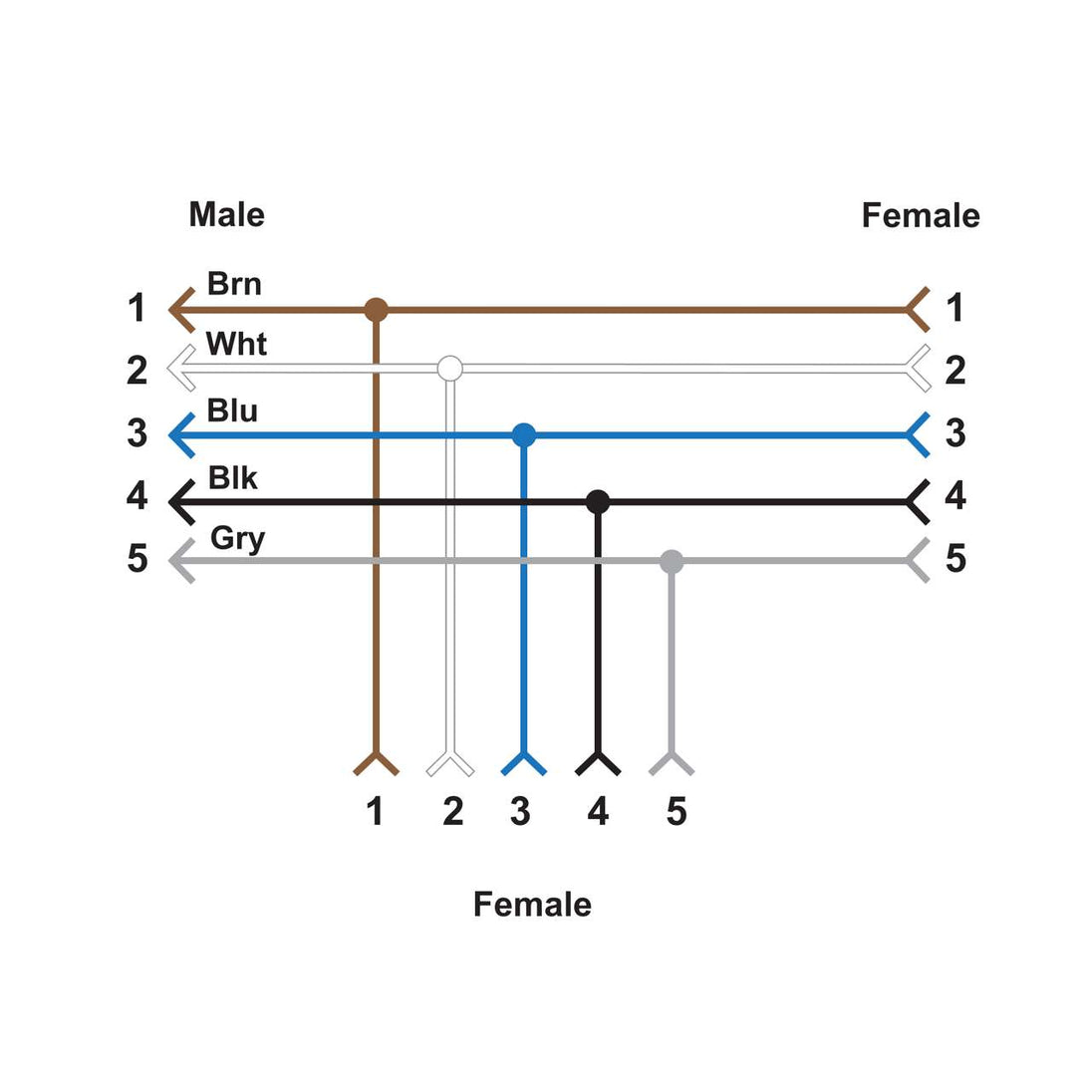

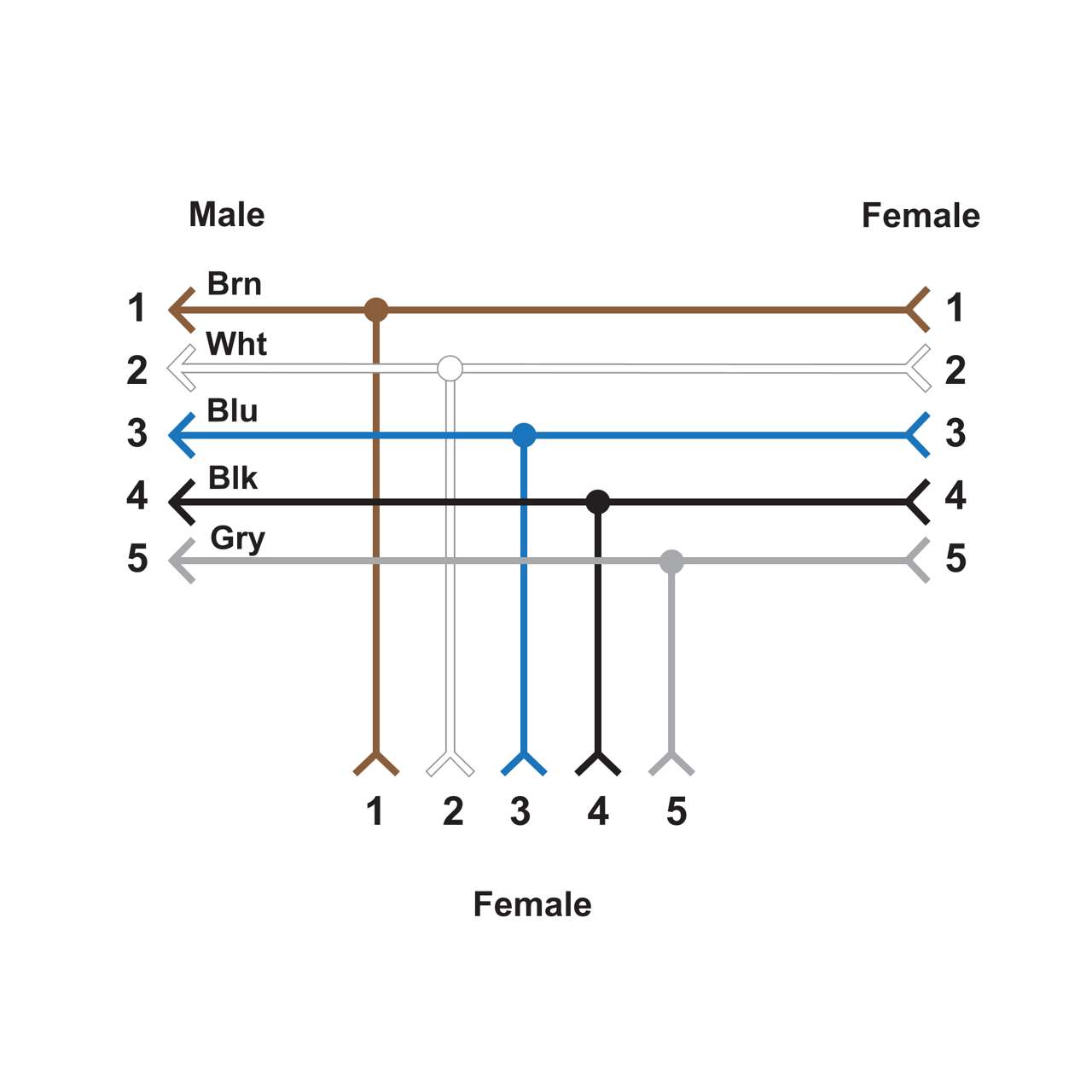

  • A diagram shows 1–5 male-female pairings with brown, white, blue, black, and gray lines—each line is a CSB-M1250M1250-T Conector Divisor M12 T 807397 cable, featuring M12 connectors on both sides.
⚠️ Imagen de referencia ilustrativa. El producto real puede variar.
The CSB-M1250M1250-T CONECTOR Divisor M12 T 807397 is a black and silver T-shaped M12 connector with three knurled ends for IP67 use, displayed on a white background.
The CSB-M1250M1250-T CONECTOR Divisor M12 T 807397 is a T-shaped industrial M12 connector with three metal, knurled-grip ports and a black plastic casing, featuring circular pin connectors—ideal for cable division in harsh IP67 environments.
The CSB-M1250M1250-T CONECTOR Divisor M12 T 807397 is a black and silver T-shaped industrial M12 connector with three circular, multi-pin ports, knurled metal grips, and IP67-rated protection.
A diagram shows 1–5 male-female pairings with brown, white, blue, black, and gray lines—each line is a CSB-M1250M1250-T Conector Divisor M12 T 807397 cable, featuring M12 connectors on both sides.

Clasificación IP: IP67
Con blindaje/Sin blindaje
Longitud del tronco (m): 0,00
Temperatura mínima (Celsius): -40
Troncal: Tipo de conector M12
Troncal: Número de contactos: 5
Temperatura máxima (Celsius): 105
Troncal: Tipo hembra
Troncal: Orientación recta
Intensidad nominal (A): 4,0
Número de derivaciones: 2
Derivaciones: Tipos de conector M12, M12
Derivaciones: Número de contactos: 5
Derivaciones: Tipo hembra, macho
Derivaciones: Orientaciones rectas, rectas
Cableado en paralelo
Divisor: Material y color del sobremoldeo: PUR negro
Voltaje de alimentación: 250 V CA/CC
Estado del artículo: LIBERADO


BANNER
SKU CSB-M1250M1250-T

CSB-M1250M1250-T CONECTOR Divisor M12 T 807397

•🟢 En stock
$ 2,355.42
+ IVA
Quedan 2 unidades · alta demanda ⚡ Envío inmediato — compra hoy
Ya solo nos quedan: 2 unidades
¡Envío Inmediato! Compra hoy. 📦
Precio por volumen disponible
Últimas piezas · confirma disponibilidad

Este producto tiene muy pocas unidades registradas en sistema. Para asegurar tu compra, confirma la disponibilidad real con un asesor — normalmente sí tenemos más en almacén.

Verificar existencias por WhatsApp
Verificar existencias
Empresa certificada · +10,000 ventas
Pago 100% seguro
Factura disponible
The CSB-M1250M1250-T CONECTOR Divisor M12 T 807397 is a black and silver T-shaped M12 connector with three knurled ends for IP67 use, displayed on a white background. The CSB-M1250M1250-T CONECTOR Divisor M12 T 807397 is a T-shaped industrial M12 connector with three metal, knurled-grip ports and a black plastic casing, featuring circular pin connectors—ideal for cable division in harsh IP67 environments. The CSB-M1250M1250-T CONECTOR Divisor M12 T 807397 is a black and silver T-shaped industrial M12 connector with three circular, multi-pin ports, knurled metal grips, and IP67-rated protection. A diagram shows 1–5 male-female pairings with brown, white, blue, black, and gray lines—each line is a CSB-M1250M1250-T Conector Divisor M12 T 807397 cable, featuring M12 connectors on both sides.
The CSB-M1250M1250-T CONECTOR Divisor M12 T 807397 is a black and silver T-shaped M12 connector with three knurled ends for IP67 use, displayed on a white background. The CSB-M1250M1250-T CONECTOR Divisor M12 T 807397 is a T-shaped industrial M12 connector with three metal, knurled-grip ports and a black plastic casing, featuring circular pin connectors—ideal for cable division in harsh IP67 environments. The CSB-M1250M1250-T CONECTOR Divisor M12 T 807397 is a black and silver T-shaped industrial M12 connector with three circular, multi-pin ports, knurled metal grips, and IP67-rated protection. A diagram shows 1–5 male-female pairings with brown, white, blue, black, and gray lines—each line is a CSB-M1250M1250-T Conector Divisor M12 T 807397 cable, featuring M12 connectors on both sides.
$ 2,355.42+ IVA

Clasificación IP: IP67
Con blindaje/Sin blindaje
Longitud del tronco (m): 0,00
Temperatura mínima (Celsius): -40
Troncal: Tipo de conector M12
Troncal: Número de contactos: 5
Temperatura máxima (Celsius): 105
Troncal: Tipo hembra
Troncal: Orientación recta
Intensidad nominal (A): 4,0
Número de derivaciones: 2
Derivaciones: Tipos de conector M12, M12
Derivaciones: Número de contactos: 5
Derivaciones: Tipo hembra, macho
Derivaciones: Orientaciones rectas, rectas
Cableado en paralelo
Divisor: Material y color del sobremoldeo: PUR negro
Voltaje de alimentación: 250 V CA/CC
Estado del artículo: LIBERADO
