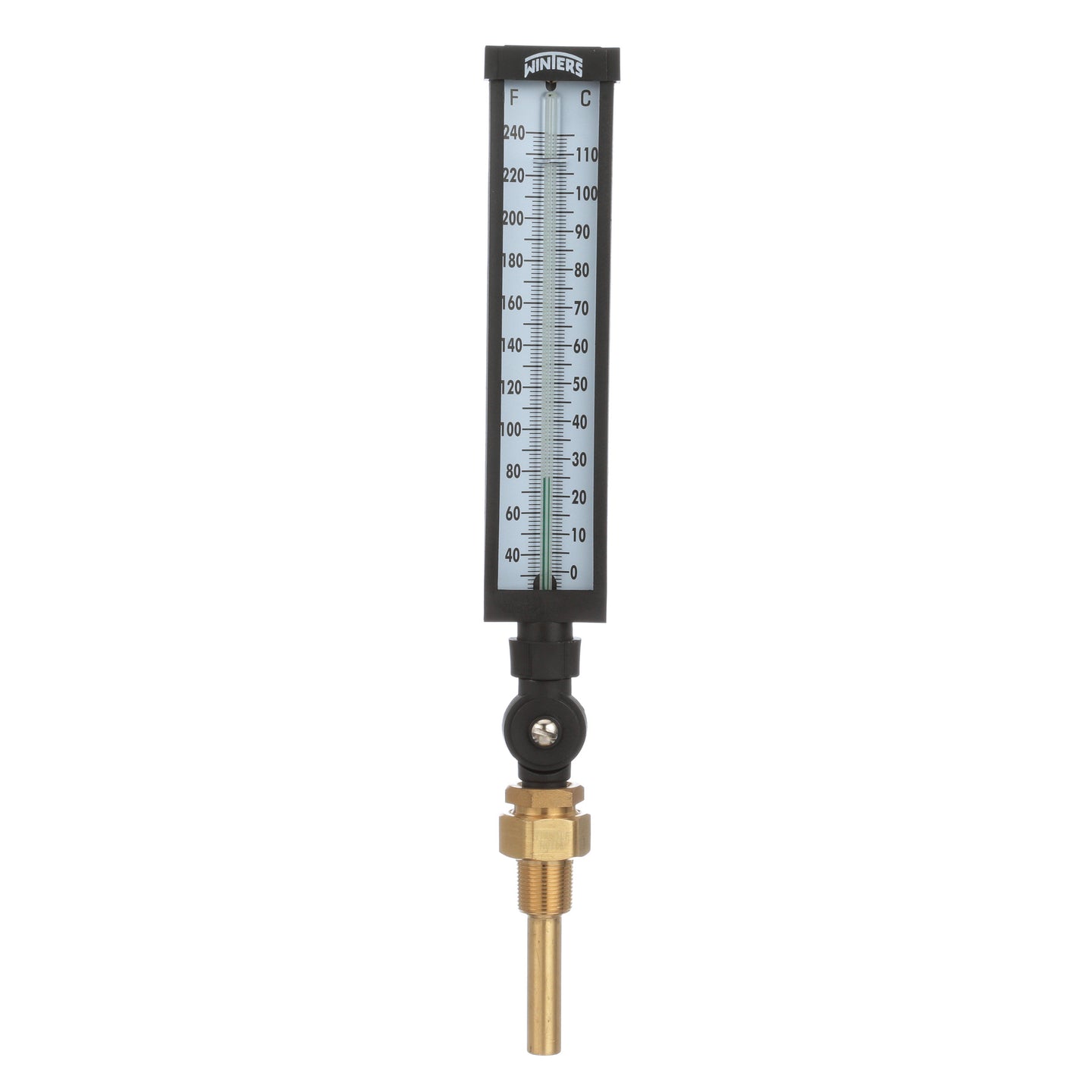

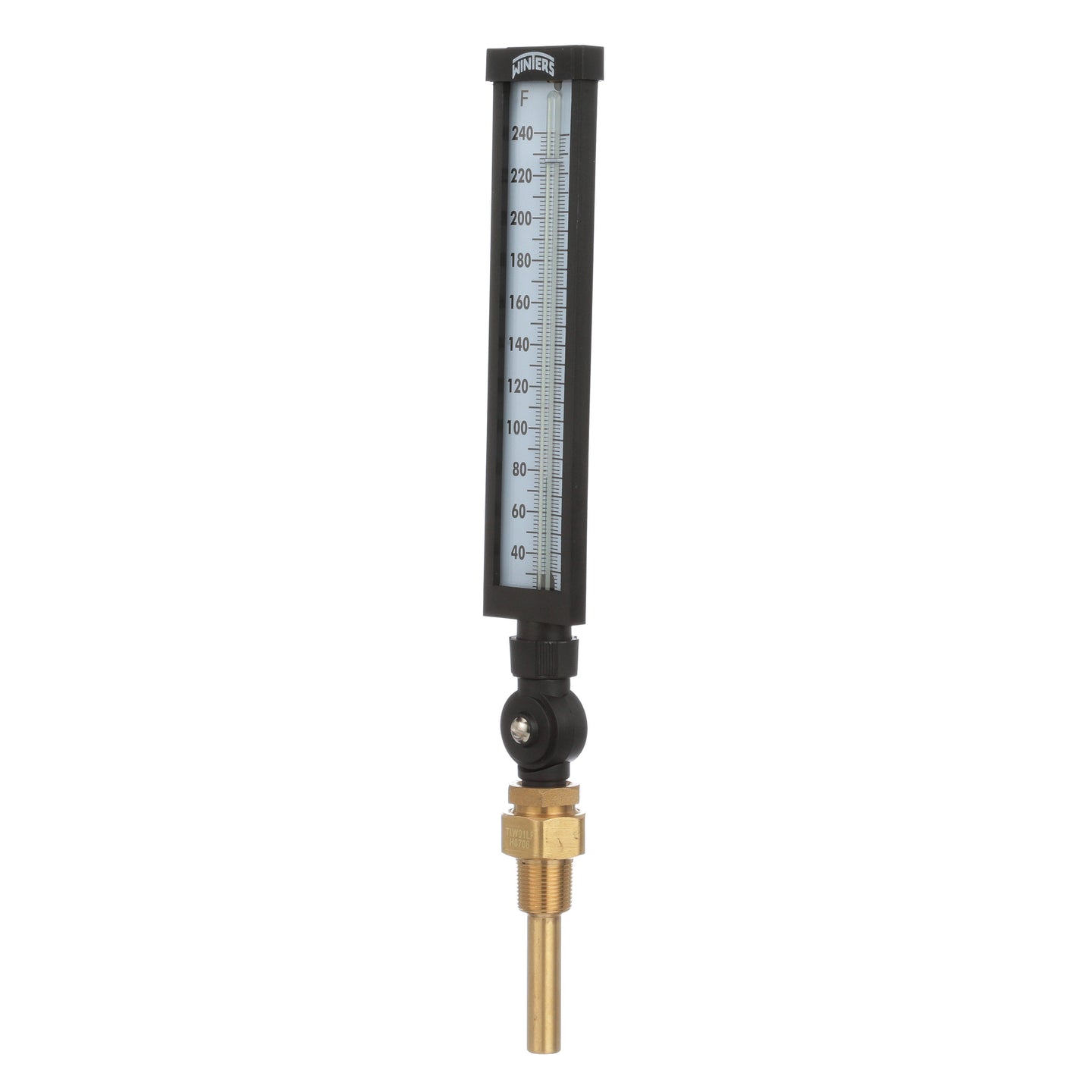

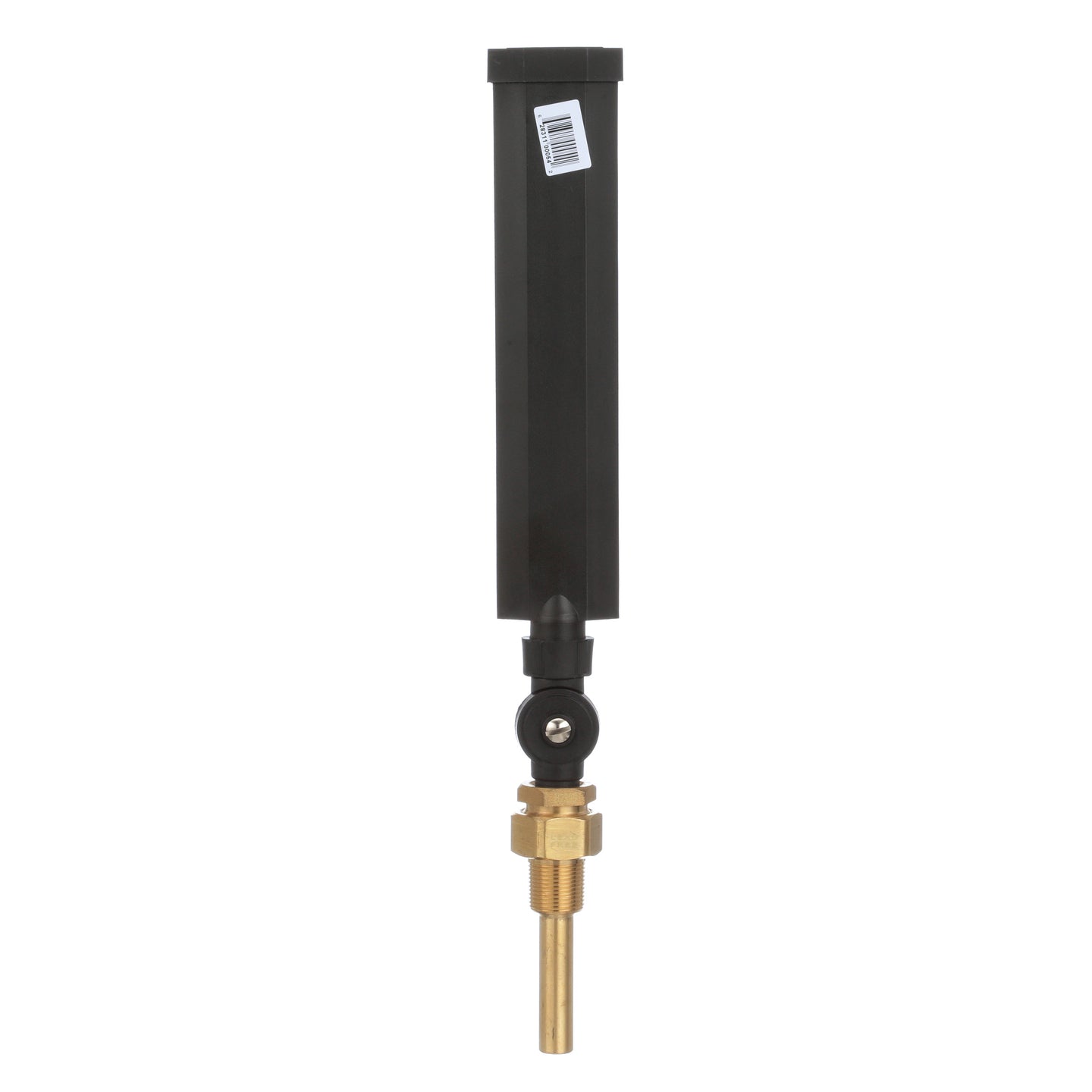

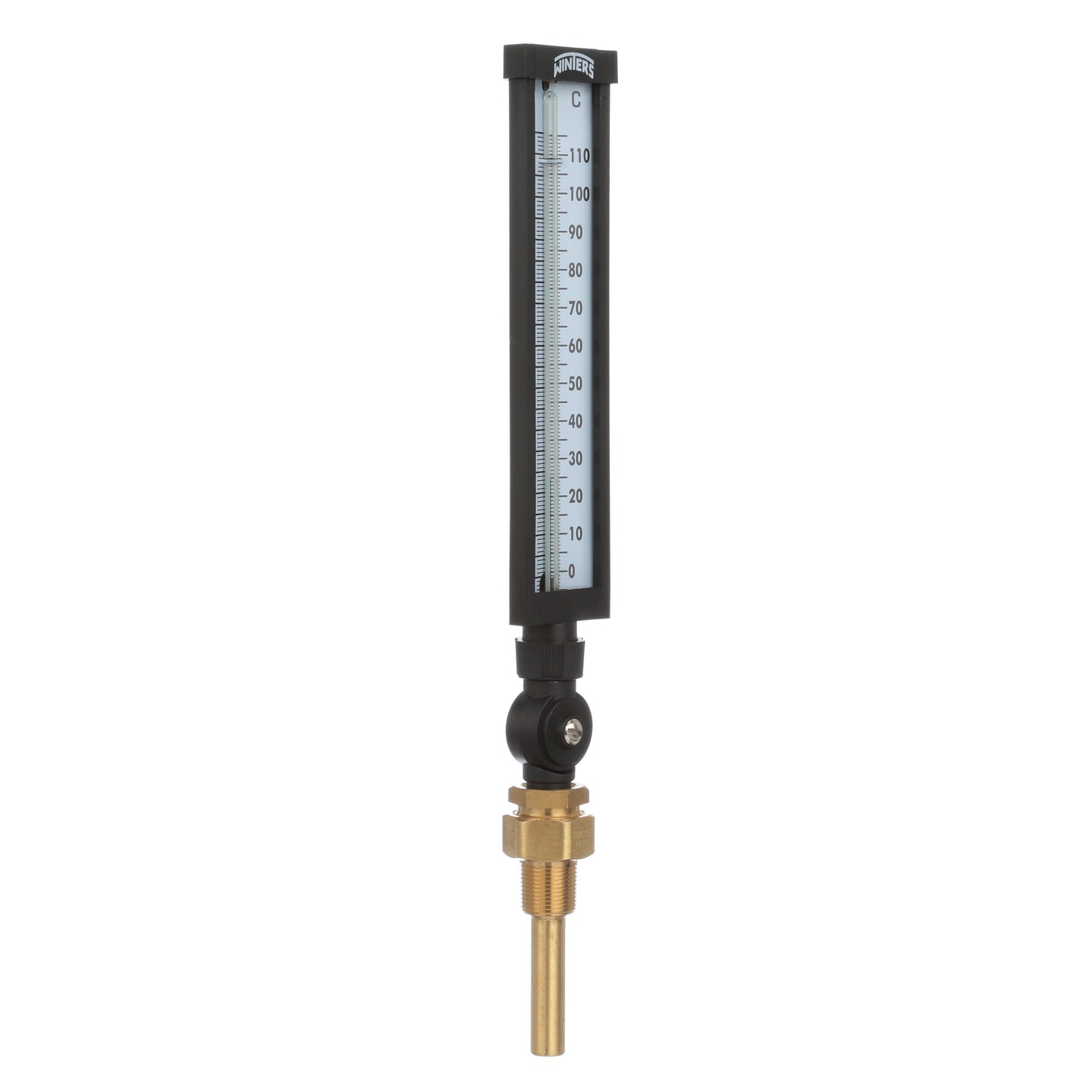

Winsters WT100A (TIM100A) Thermometer, 9-inch Aluminum Dial, 0–115°C Range
The Winters WT100A (manufacturer model TIM100A) is a precision 9-inch industrial thermometer designed for reliable temperature measurement in commercial and industrial plumbing applications. With a durable aluminum case, a 3.5-inch stem, and a variable angle connection, this thermometer offers flexible installation and excellent readability. It is suitable for use in new construction, water lines, boilers, and HVAC systems, providing accurate readings from 0 to 115°C (30 to 240°F).
Specifications Highlights
- Brand: WINTERS
- Model: WT100A (Manufacturer model TIM100A)
- Dial Size: 9 inches (230 mm) aluminum case, impact-resistant
- Stem Length: 3.5 inches (90 mm)
- Connection: ¾ inch NPT with separable thermowell (brass or lead-free brass); 1/4 inch UNEF swivel nut option without thermowell
- Temperature Range: 0 to 115 °C / 30 to 240 °F
- Accuracy: ±1%
- Lens: Glass (polycarbonate optional)
- Tube & Sensing Fluid: Glass magnifying tube with organic green fluid
- Bulb Chamber: Tapered cast aluminum with graphite fill for maximum heat conduction
- Enclosure Rating: IP54
- Compliance: ASME B40.200, ASTM E2251, CAN/CGSB-14.4-M88, RoHS compliant (with 304SS or 316SS thermowells)
- Warranty: 5 years
Applications and Common Uses
- New construction and commercial plumbing systems
- Water lines and heating systems
- Boilers and hot water tanks
- Ventilation and air conditioning (HVAC) equipment
- Industrial process monitoring where reliable temperature readings are required
Why Choose the Winters WT100A?
- Accurate and reliable: ±1% accuracy ensures dependable temperature measurement for critical processes.
- Durable construction: Aluminum case and impact-resistant design withstand harsh industrial environments.
- Flexible installation: Adjustable angle connection and 360° case rotation allow for optimal viewing from any direction.
- Fast response: Graphite-filled bulb chamber maximizes heat conduction for quick and accurate readings.
- Wide compliance: Meets ASME, ASTM, and RoHS standards, ensuring quality and safety.
Backed by a 5-year warranty, the Winters WT100A is a robust and reliable choice for industrial temperature monitoring. WINTERS is a trusted brand known for durable, high-quality instrumentation, making this thermometer a smart investment for your operations.
Preguntas Frecuentes
What is the Winters WT100A (TIM100A) thermometer used for?
The Winters WT100A (TIM100A) is a 9-inch industrial thermometer designed for accurate temperature measurement in commercial and industrial plumbing applications, such as water lines, boilers, heating systems, and HVAC equipment. Its durable aluminum case and adjustable angle connection make it suitable for permanent installation in these environments.
What is the temperature range of the WT100A thermometer?
The WT100A thermometer has a dual scale measuring from 0 to 115 degrees Celsius and 30 to 240 degrees Fahrenheit. This range covers typical applications in plumbing, heating, and ventilation systems.
What are the key specifications of the Winters WT100A (TIM100A)?
The Winters WT100A (TIM100A) has a 9-inch (230 mm) aluminum case, a 3.5-inch (90 mm) stem, and a 3/4 inch NPT connection with an optional separable thermowell. It offers ±1% accuracy, IP54 enclosure rating, and a glass lens. The sensing tube is glass with organic green fluid, and the bulb chamber is tapered cast aluminum with graphite fill.
